On Spitfires (Part Two)

Welcome back

Following on from Part One, we rejoin Indicator’s tour of the Spitfire family with some handling notes and personal memories, a brief look at the later Griffon-engined stable, and some final thoughts on the long evolution of history’s most iconic fighter…

With it's thrusting nose cowling accentuated, LA198 is a Spitfire F Mk.21 preserved at Kelvingrove Museum in Glasgow, Scotland. (Photo: Mark Harkin | flickr.com CC BY 2.0)
With it’s thrusting nose cowling accentuated, LA198 is a Spitfire F Mk.21 preserved at Kelvingrove Museum in Glasgow, Scotland. (Photo: Mark Harkin | flickr.com CC BY 2.0)

Joy flying

By way of relief from the old original pressure-cabin types of the Mark VI and VII, the Mark XI PRU Spitfire was quite the simplest and most easy-going affair designed for medium-high altitude work and high speed.

Rare Spitfire PR XI, the fastest (and sweetest - see text) of the Merlin Spitfires. This is PL965, now resident at North Weald with Hangar 11. (airwolfhound | flickr.com CC BY-SA 2.0)
Rare Spitfire PR XI, the fastest (and sweetest – see text) of the Merlin Spitfires. This is PL965, now resident at North Weald with Hangar 11. (airwolfhound | flickr.com CC BY-SA 2.0)

There was no pressure-cabin and, most delightful of all, no gunsight to restrict one’s forward view. In place of the bullet-proof screen was a pleasant one-piece moulding which, with the canopy, gave an unrestricted view of the entire upper hemisphere.

The Mark XI was also lightened considerably by the absence of guns. However there were two extra wing tanks well outboard, the contents of which were indicated on two extraordinary gauges – which always seemed to indicate the same amount whether the tanks were empty or full.

The only practical solution was to run each of them dry in turn. Then at least you knew where you were.

Griffon – a new and special noise

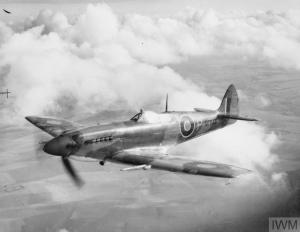

The very first Griffon Spitfire, DP845. Originally built as a Mk.III it was modified for the Griffon as the only Mk.IV, briefly re-designated a Mk.XX, then improved to become the prototype Mk.XII – the first Griffon 'Spit' to enter production and service. (IWM HU 2198)
The very first Griffon Spitfire, DP845. Originally built as a Mk.III it was modified for the Griffon as the only Mk.IV, briefly re-designated a Mk.XX, then improved to become the prototype Mk.XII – the first Griffon Mark to enter production and service. (IWM HU 2198)

The first of the Griffon-engined Spitfires, the Mark XII, seemed to behave simply as a Mark V with more power and a torque-swing in the opposite direction (i.e. to the right).

At first, when flying these later Marks, it took something of an effort of memory to set the rudder bias correctly – although nothing very terrible happened if you forgot, except to the muscles of your left leg!

And, recalling the ‘good old days’ of the Mk.II, we had to re-accustom ourselves to the cartridge-starting procedure with the Griffon Spitfires.

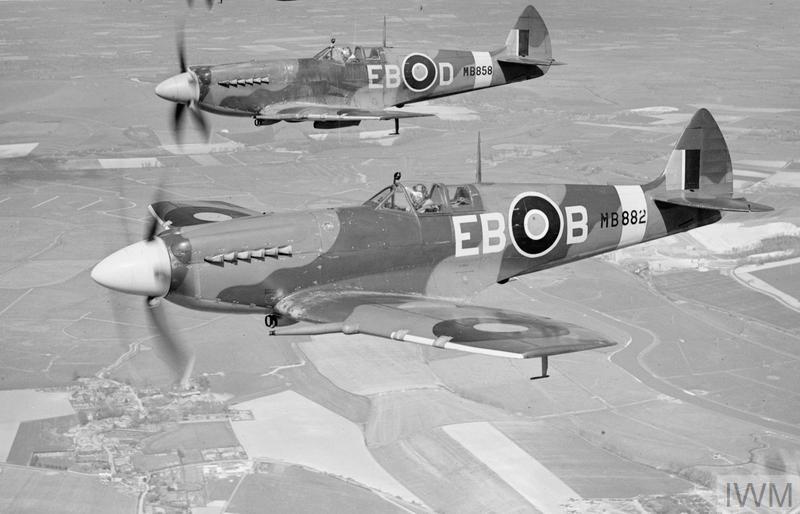

Two pilots of 41 Squadron RAF exercising the 1,735HP Griffon engines of their Spitfire F Mk.12s. Defined as a low level interceptor, the XII still hit its top speed of 390mph at a respectable 18,000 feet. (© IWM CH 12757)
Two pilots of 41 Squadron RAF exercising the 1,735HP Griffon engines of their Spitfire F Mk.12s. Defined as a low level interceptor, the XII still hit its top speed of 390mph at a respectable 18,000 feet. (© IWM CH 12757)

But the XII had a new and rather special noise which we quickly learned to like as more and more XIIs and XIVs came into the market. And although the actual stalling speed, even at the greater all-up weight, appeared to be virtually unchanged, the XII and later Griffon Marks had a pleasant way of staying much more firmly on the ground after touchdown in rough conditions.

Flight on the edge

With the Spitfire, lateral trim always provided some interesting little problems. In the early days of fabric-covered ailerons the usual ‘cording’ method^ was used and then, when the change-over to metal surfaces came, the trailing edge used to be reflexed sharply to produce much the same results.

^airscape Note: Literally attaching cord to the aileron trailing edge to create a sharper angle.

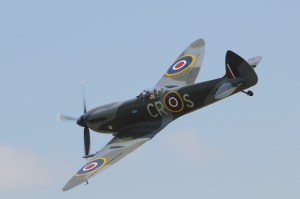

Broad-nosed, but without the distinctive bulges over the cams of a Griffon, this is the later Spitfire Mk XVI (TD248, 'CR-S') powered by a Packard-built Merlin 266. (martin_vmorris | flickr.com CC BY-SA 2.0)
Broad-nosed, but without the distinctive bulges over the cams of a Griffon, this is the later Spitfire Mk XVI (TD248, ‘CR-S’) powered by a Packard-built Merlin 266. (martin_vmorris | flickr.com CC BY-SA 2.0)

Still later, it became customary to obtain even, or nicely averaged, lateral trim by the cleaner and more civilised expedient of ‘dressing’ or ‘planishing’ the aileron trailing edges over the whole length, using a wooden mallet and a supporting block.

Excellent in theory though this might be, the fact remains that, for one reason or another, only adjustments to the inner foot or two of aileron edge usually produced any marked effect on the trim, and it was sometimes necessary to ‘dress’ the edge almost to the extent of using the much-despised reflex method.

Doubt and despondency

Needless to say, different test pilots’ equally different methods of indicating trimming defects could cause a good deal of doubt and despondency on the ground. Some, in their reports, wrote in terms of ‘inches’ of lateral trim defect, and others in still more mysterious ‘degrees’, while all had their own particular standards of measurement in the different universes of their own imaginations.

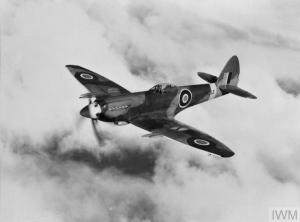

Spitfire Mk.22 prototype PK312. The Mk.22 was essentially a low-back Mk.21, which was itself developed from the Mk.XIV through various improvements and a more powerful Griffon 61. (© IWM HU 1682)
Spitfire Mk.22 prototype PK312. The Mk.22 was essentially a low-back Mk.21, which was itself developed from the Mk.XIV through various improvements and a more powerful Griffon 61. (© IWM HU 1682)

It was a good rigger who could translate the trimming requests of two or three different pilots, each speaking a different ‘language’, with any real accuracy.

The ‘inches’ were, in fact, a relic of the days when we either laid lengths of cord on the aileron’s upper trailing edge, or bent the edge sharply along so many inches of span.

Trimming by degrees

The measurement by the ‘degree’ system – the ingenious idea, I believe, of a certain Maintenance Unit test pilot, and applicable only to one or two types – was even more mysterious to the uninitiated, although it was really very simple.

When a particular aircraft was, say, tending to roll to the left, one merely trimmed this tendency out on the rudder bias until, by virtue of various complicated aerodynamic forces, the aircraft would fly level while, of course, skidding quietly along to the left.

The top needle of the Watney, Combe and Reid showed the amount of this skid, and there you were.

airscape Note: This was, of course, the Turn & Slip indicator. The reference to Watney et al, a very popular brewery, probably comes from RAF personnel’s own tendency to ‘turn and slip’ after a few too many in the local pub.

The unfortunate rigger

This measured skid amount varied in complicated proportion to the amount by which the aircraft would normally, when properly trimmed directionally and left to itself, have been trying to roll. It was a quite mechanically standard method of indicating the amount of lateral trim error, and all pilots would produce the same answer for the same aircraft at the same speed.

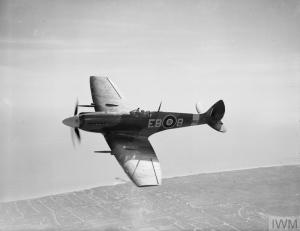

Showing the clipped wings of a low-level fighter, Spitfire Mk.XII 'EB-B' of 41 Squadron RAF performs for the camera in April 1944. (©IWM CH 12752)
Showing the clipped wings of a low-level fighter, Spitfire Mk.XII ‘EB-B’ of 41 Squadron RAF performs for the camera in April 1944. (©IWM CH 12752)

Unfortunately, however, four degrees of indicated skid, say, were by no means the same as twice two degrees of skid when translated into lateral trim terms. The unfortunate rigger had to think that one out, and he very quickly learned to do so.

There were, occasionally, those awful moments when an aircraft off the production line would want to roll strongly one way while already having a near-limit up float tendency on the opposite aileron. Obviously, it was impossible to dress the aileron to correct the trim without further increasing this up float.

Results could sometimes be obtained by a judicious hammering of the shrouds, but it usually meant a complete aileron change and sometimes even a complete wing change.

A manufacturing fault

One of the more mysterious troubles with which aircraft are sometimes beset appeared with a particular XII which had already done quite a good deal of flying.

'EB-B' again, this time on the ground at Friston, with a slipper tank between its undercarriage to give extra 'legs' for the thirsty Griffon. (©IWM CH 12726A)
‘EB-B’ again, this time on the ground at Friston, with a slipper tank between its undercarriage to give extra ‘legs’ for the thirsty Griffon. (©IWM CH 12726A)

This aircraft developed a power-surging tendency which was tantamount to a series of dead cuts—and always at high speeds. The constant-speed unit was at first suspected, and hopes of a cure were high when the inside of the mechanism was discovered to be both worn and very dirty. But the surging continued. In turn the c.s.u., the airscrew, and even the carburettor were changed, with no perceptible result.

Only a long series of very earnest diving tests at different boosts and constant speed settings finally revealed the definite fact that the violence of the surging increased primarily with speed – 320 mph appeared to be the critical ‘starting’ speed – and, to a lesser degree, with variations in revolutions and boost.

Obviously, therefore, the trouble was bound up with some variation in ram effect, and it was eventually discovered that, due to a manufacturing fault, the shape of the air intake was being changed by the increasing air pressure. It was not actually closing up, so much as distorting, and neither the boost control nor the c.s.u. could cope with the violent alternations in outer intake pressures.

Something of a climax

Some characteristics of the later Spitfires, and of the Mark XIV in particular, were given in a separate article (see airscape Flying the Fourteen), but there was one difficulty which came to something of a climax in testing later versions of this type.

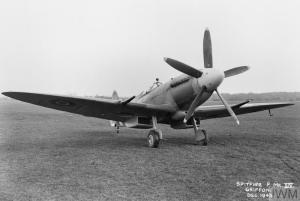

Spitfire F Mark XIVE, RB151, of No.610 Squadron RAF shows off the five-bladed, broad-chord Rotol propeller needed to harness the power of its Griffon engine. (© IWM ATP 12462B)
Spitfire F Mark XIVE, RB151, of No.610 Squadron RAF shows off the five-bladed, broad-chord Rotol propeller needed to harness the power of its Griffon engine. (© IWM ATP 12462B)

Although earlier Marks had been fitted with what were known as ‘interconnected’ or ‘automatic’ engine controls, the boost-revolution situation could sometimes be quite remarkably acute when making adjustments to the XIV.

No very useful checks could be made during the ground run because the c.s.u. never had a chance to take the blades off their stops, except at boost levels not permitted on the ground. During run-up the boost was always ‘ahead’ of the revolutions, the airscrew was always in fine pitch, and one never knew whether the c.s.u. was functioning properly – let alone whether the ‘interconnected’ and ‘stop’ settings were actually correct.

Certain tolerances

All this was managed by the two constant speed stops (‘automatic’ and ‘override’) and one setting for minimum revolutions, as well as a couple of control rods on which intermediate adjustments could be made. There were also boost capsule adjustments and stops in the throttle gate – a movement on any of which could change the relationship between power and revolutions.

Certain tolerances were permitted and the fitter had to strike a nice average, using boost and interconnection adjustments in unison, to obtain all-round results with both boost settings and revolution readings within their allowable ranges.

And yet in spite of all this complexity, with an expert in attendance, it was only necessary to bring back a series of complicated and apparently uncoordinated figures for immediate and correct results to be obtained on the next flight.

Simple Seafires

One should, of course, include the Seafire variants amongst all the rest. The Seafire Mark III, in particular, was remembered for its light, almost over-light, aileron control, while the Mark XV was almost entirely similar to the XII.

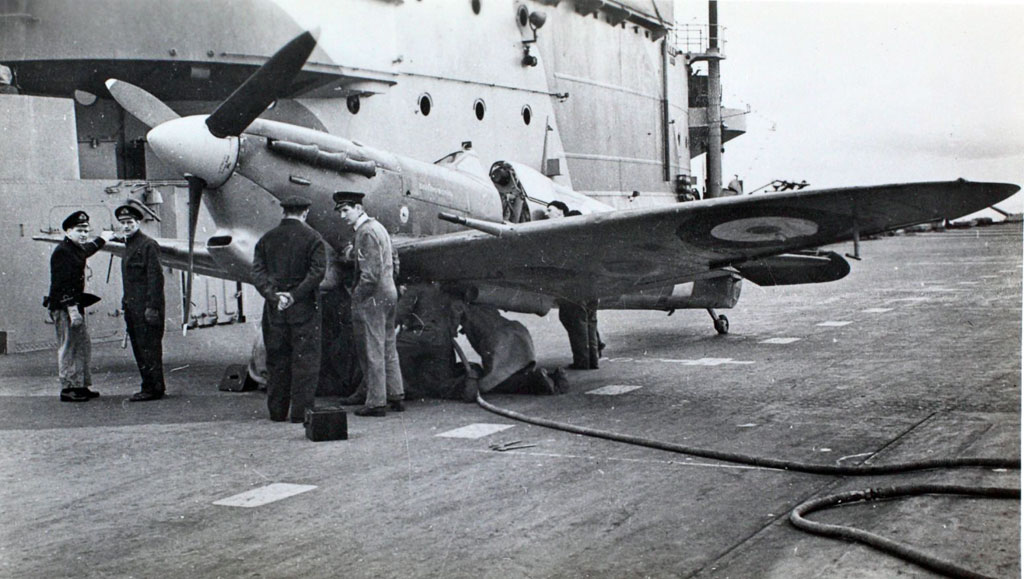

Not positively, but likely Mk.VB BL676, the very first Spitfire to land on a carrier when she alighted aboard HMS Illustrious in the River Clyde on January 10th, 1942. (SDASM #15-002637)
Not positively, but likely Mk.VB BL676, the very first Spitfire to land on a carrier when she alighted aboard HMS Illustrious in the River Clyde on January 10th, 1942. (SDASM #15-002637)

We liked the Seafire III rather specially, not only because it handled so nicely, but also because later, when nearly all Spitfires were fitted with gigantic gyro gun-sights, the Seafire was still fitted with the old-fashioned reflector sight. And it had no interconnected controls to worry about.

Ends of the line

For nearly all aircraft types, the basic handling characteristics are largely concerned with lateral control – and, from this point of view, the Spitfire F.21 was a very different type from earlier Marks.

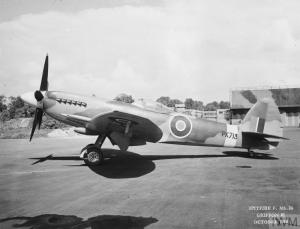

Over-developed...? Last in line was the Spitfire F Mk.24 (type 356), similar to the Mk.21 but with 66 gals additional fuel – almost K5054's entire 85 gal capacity – in the rear fuselage. Only 54 were delivered, from March 1946. (© IWM MH 5285)
Over-developed…? Last in line was the Spitfire F Mk.24 (type 356), similar to the Mk.21 but with 66 gals additional fuel – almost K5054’s entire 85 gal capacity – in the rear fuselage. Only 54 were delivered, from March 1946. (© IWM MH 5285)

In particular, the natural course of development for higher speeds had made it necessary to introduce geared servo tabs to the ailerons. Pleasantly light though these made them, the ailerons lost their original ‘feel’ and became somehow soulless. As nice as the 21 was, with its taller and wider undercarriage and supremely joyous performance, it had ceased to be a Spitfire.

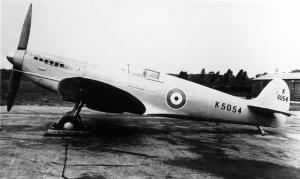

Back to where it all began... Spitfire prototype K5054, or Supermarine Type 300 – as a comparison to the Mk.24 shown above. (SDASM #01-00092402)
Where it had all began… Spitfire prototype K5054, or Supermarine Type 300 – as a comparison to the Mk.24 shown above. (SDASM #01-00092402)

So, while the Spitfire’s layout and general characteristics were slightly but irrevocably altered with the introduction of the Mark XIV, the final loss of that distinctive ‘Spitfireness’ really came long before it’s replacement – the Supermarine Spiteful – entered service.

Maybe I’d lived too long on the earlier Marks and was of a naturally conservative nature but, to me, the epitome of Spitfire development came in its middle years.

Even such a superb design could, it seems, eventually become over-developed.
