May 24th every day

The power to fly

Title: Tech. Sgt. Rainier Howard, 374th Aircraft Maintenance Squadron crew chief, performs preflight inspection of a C-130J Super Hercules at Kadena Air Base, Japan, March 6, 2017. (U.S. Air Force photo by Staff Sgt. Michael Smith)

I guess I’m as guilty as anyone: I’ve written a few things about the Wright Brothers over the years and, most memorably, about the North Carolina Surfmen who helped them make their historic flights at Kitty Hawk.

But, for all that, I’ve missed the man who did more than any other to make their place in history possible, and became the template for those who’ve put every pilot and passenger safely into the air since.

No, not Otto Lilienthal or Lawrence Hargrave. Not Sir George Cayley (and his long-suffering coachman). Not even Octave Chanute or Samuel Langley… Because even though the Wrights were innovators in research, method, linen and spruce, the key to their success was – as it always is – their mechanic.

Meet Charlie Taylor.

Charles Edward Taylor

Charles Edward Taylor (May 24th, 1869 – January 30th, 1955) the template for all aviation mechanics.

Of course, if you already know about Charlie Taylor you can take this moment to enjoy a quiet, congratulatory fist-pump and move on. But if not, gather round.

Charlie Taylor grew up on the US frontier. He was born in a log cabin near Cerro Gordo, Illinois on May 24th, 1868 and moved, with his family, to Lincoln, Nebraska a few years later. Now Nebraska’s state capital, Lincoln had a population of just 600 or so in the early 1870s – mostly homesteaders and their families. For the farmers, it was big grass country. Big grass, and big sky…

At 12, Charlie started running errands for the Nebraska State Journal where his natural mechanical abilities soon surfaced and he served an apprenticeship in the Journal’s bindery.

Wilbur and Orville

After moving to Kearney, NE, in his twenties, Charlie courted and wed Heretia Webbert from Dayton, Ohio. Then, in 1896, the couple moved to Dayton with their young son to be closer to Heretia’s family and and improve Charlie employment opportunities.

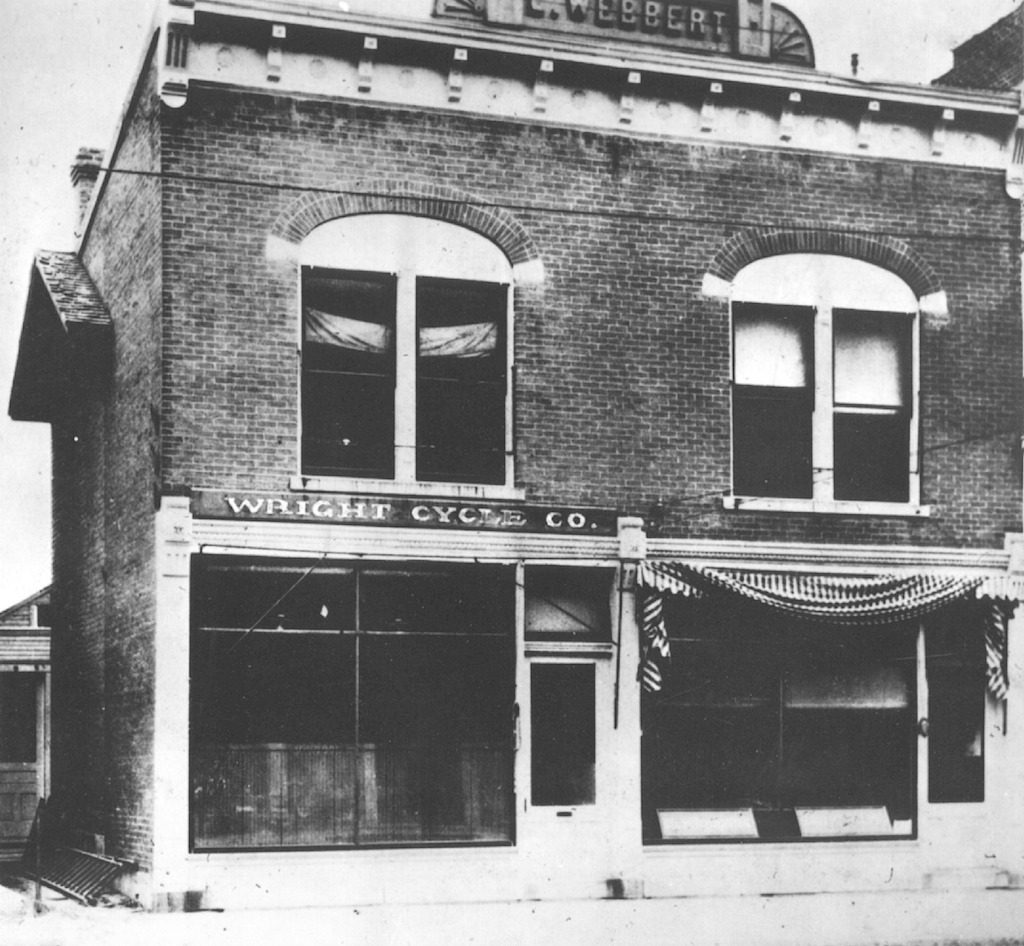

Mrs Taylor’s Uncle’s building at 1127 West Third Street in Dayton, which he rented to the Wrights from the mid-1890s. (wright-brothers.org)

It worked – he was employed by Stoddard Manufacture of Dayton, a company that made farming equipment but was also capitalising on the 1890s bicycle craze.

Meanwhile, Heretia’s uncle had rented a building he owned, on West Third Street, to a pair of brothers who were also in the bicycle business – Bishop Milton Wright’s sons Wilbur and Orville.

The young men were all about the same age and soon became friends. Charlie had opened his own machining shop and the Wrights would bring Taylor jobs that needed his special skills and equipment.

Almost inevitably, the trio ended up working together. Charlie had sold his shop and taken a job he didn’t like at Dayton Electric Co for $10 a week. So when the Wrights offered him $8 more to work with them in June 1901, he jumped.

The way forward

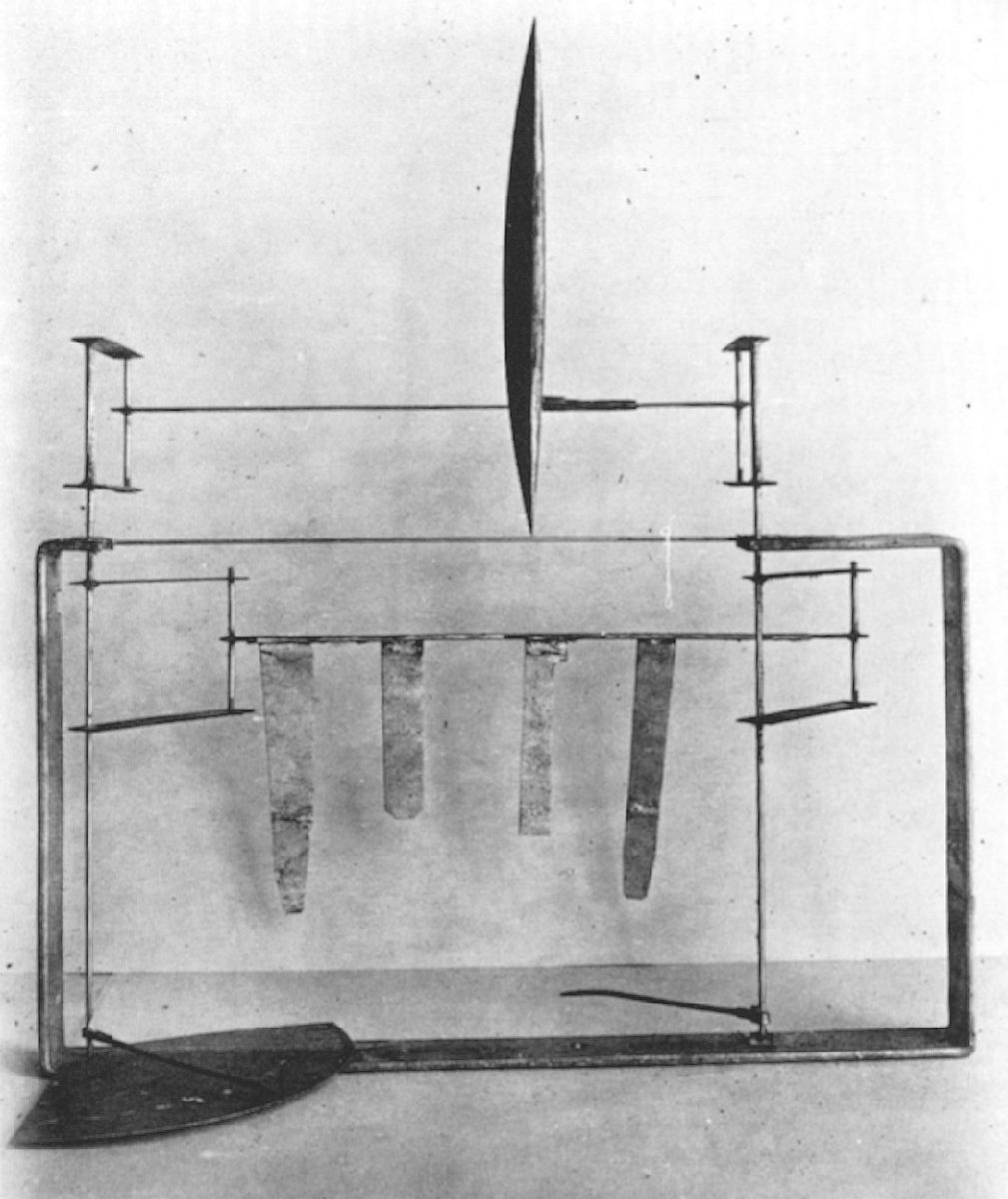

The delicate force balances that Charlie Taylor built for the Wright’s wind tunnel, from ground down hacksaw blades. (wright-brothers.org)

By 1901, as you can imagine, Charlie was about to take a pivotal role in the Wright Brothers’ aeronautical experiments. Along with day-to-day bicycle repairs, he also looked after the business during their trips to Kitty Hawk.

After a disappointing summer there in 1901, the Wrights had Charlie build them a wind tunnel so they could better analyse the behaviour of different airfoils under varying conditions. The wind tunnel results opened the way forward for Wilbur and Orville to build their 1902 glider – the craft in which they learned to fly. And Charlie Taylor made fittings for that as well.

Less than 180 pounds

By the time they came home on October 31st, 1902, the Wright Brothers knew they were ready to build and fly a powered machine.

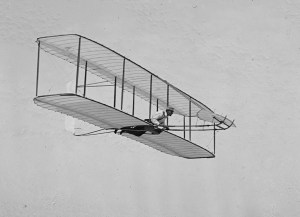

Wilbur aloft in the 1902 glider at Kitty Hawk, SC. This glider benefited from all the research done the previous winter in the wind tunnel Charlie Taylor built. It was the craft in which the Wrights learned to fly. (LoC P&P ppprs.00602)

They soon calculated that they’d need an 8 horsepower motor to drive their 550 pound (250 kg) design through the air. Allowing for the weight of the machine itself and a pilot meant this motor would need to weigh less than 180 pounds (81.5 kg).

Famously, they wrote to several automobile motor makers to try and get such an engine made – without success. So they turned, once again, to Charlie Taylor.

The Wrights had worked out that a four cylinder motor with 4-inch bore and 4-inch stroke could provide the power they needed and still weigh less than 200 pounds ‘wet’. They explained what they wanted to Charlie and asked if he could make it.

It was a triumph

Although he’d never made a motor before, Taylor could easily understand the machining tasks that would be needed and got to work. The two brothers and Taylor would work out each component on paper, talk it through, and then hang the final sketch over Charlie’s workbench for him copy. He was finished in just six weeks.

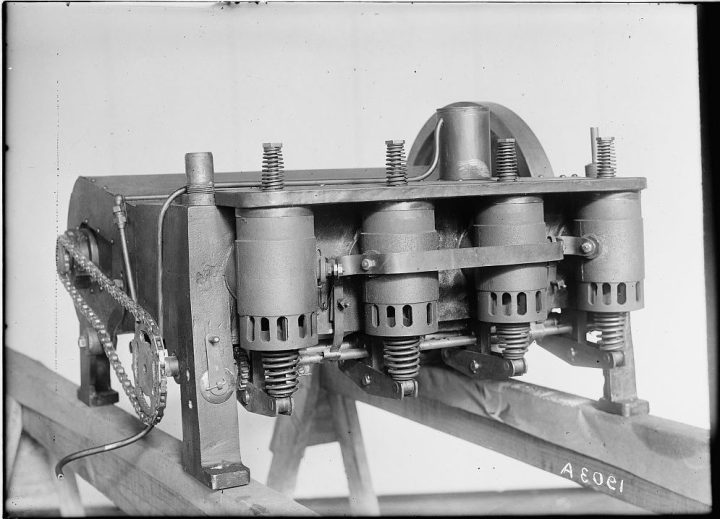

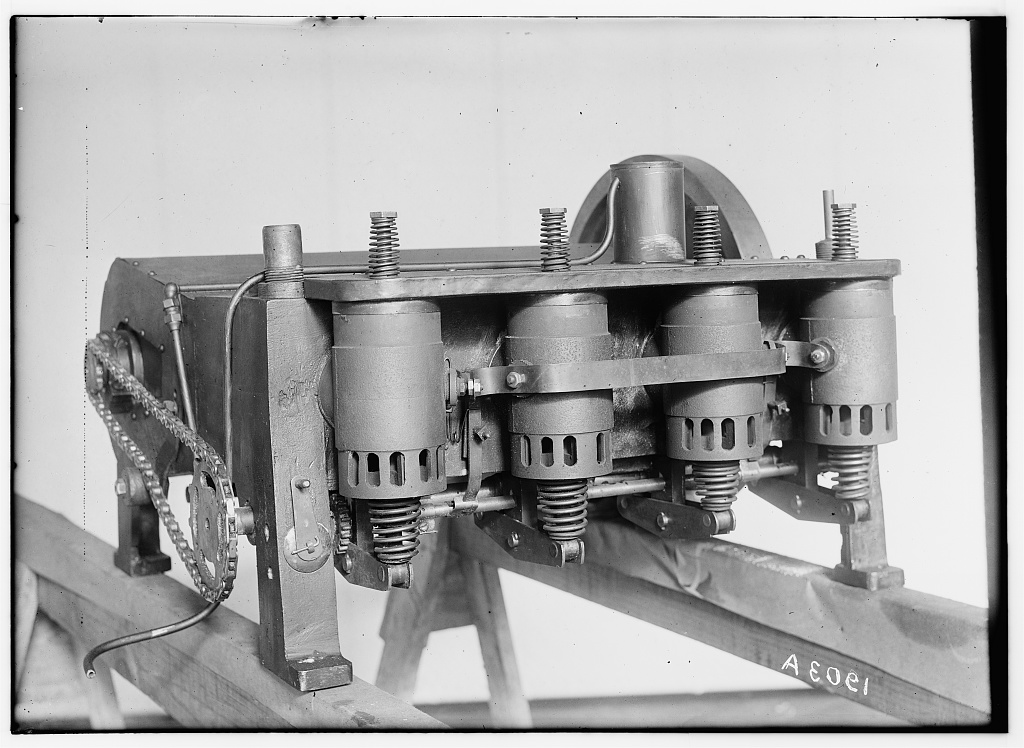

A beautiful view of the motor Charlie Taylor made for the Wrights’ 1903 Flyer. Working it out as they went, the three men got 150% of the power they wanted, for less weight, in just six weeks. (LoC P&P ppprs.00650)

The crankcase was forged from an alloy of 92% Aluminium and 8% Copper by the Buckeye Iron and Brass Foundry in Dayton. Charlie Taylor cleaned it up, then turned and bored the four cylinders himself from fine-grained cast iron.

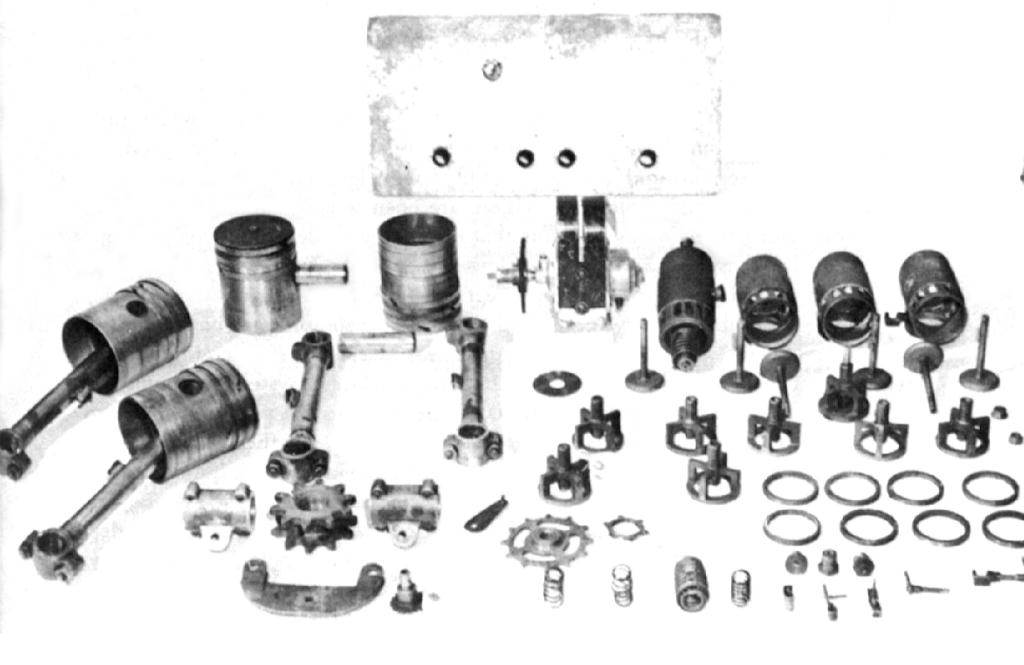

Small parts of Flyer motor. Taylor machined most from castings or solid steel. The gears were made specially by Garrison Machinery Works, a few blocks from the Wrights’ shop. (wright-brothers.org)

Next he took a plate of carbon tool steel 1-5/8 inches (41.275 mm) thick by 31 inches (787.4 mm) long and marked out his crankshaft on it. Using only hand tools, a drill press and a lathe, he painstakingly chain-drilled around the pattern, knocked out the part, and shaped it on the lathe to an accuracy of 0.001 inches (0.025 mm). He then turned the heavy fly wheel from a block of cast iron.

The remaining small metal parts – pistons, valves, connecting rods, etc – were each figured out, fit together and formed one by one. After countless test-fittings and trial assemblies, the world’s first aero engine was ready to run in February 1903. It was run briefly, un-lubricated, and delivered its 8 HP (5.97kW) at just 670 rpm.

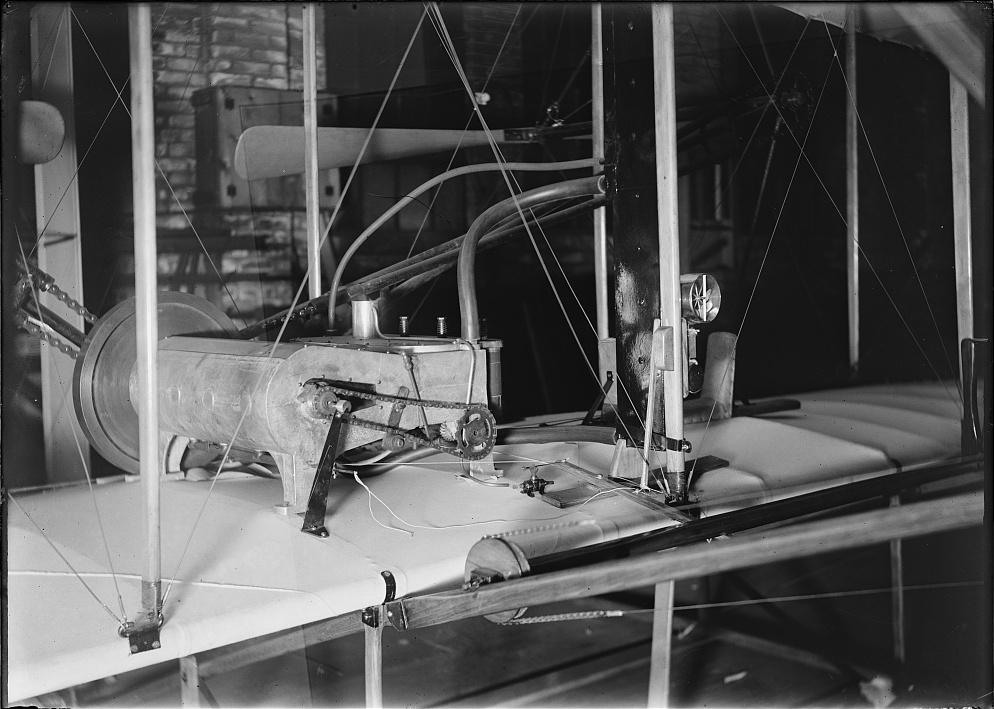

Taylor’s motor mounted on the restored 1903 Flyer (following its return from the UK in 1948), looking aft, from the front left. (LoC P&P pprs.00627)

Further engine runs turned out an initial burst of up to 16 HP (11.93 kW) at 1,200 rpm and a steady 12 HP (8.95 kW) at 1,020 rpm. Best of all, it weighed only 170 pounds (77.3 kg). It was a triumph.

Taylor’s achievement gave the delighted Wright Brothers the confidence to add a critical 150 extra pounds (68 kg) to their Flyer, for extra strength and safety.

On the windy 17th

When Orville and Wilbur went to North Carolina on September 23rd, 1903, Charlie stayed behind and minded the shop. When the tubular propeller shafts developed a fault in November, they were sent back to Charlie for repair. They were back on the Flyer on November 20th.

The Moment: With Charlie’s motor clattering beside him, Orville lifts into the stiff, cold Atlantic wind on December 17th, 1903. (JT Daniels | LoC, P&P pprs.00626)

The first winter storms kept the Wright Brothers inside their camp buildings that week, but while test running the engine on November 28th, one of the troublesome propeller shafts cracked.

This time Orville went back to Dayton, where Charlie had made new shafts of solid tool steel. Orville took them back to Kitty Hawk and had them fitted to the machine late on Saturday, December 11th.

After Wilbur’s failed take-off on Monday the 14th, Orville tried successfully on the windy 17th. Then, taking turns, the Wrights proceeded to make history in their (if you’ll allow me) ‘Wright-Taylor Flyer’.

Huffman Prairie

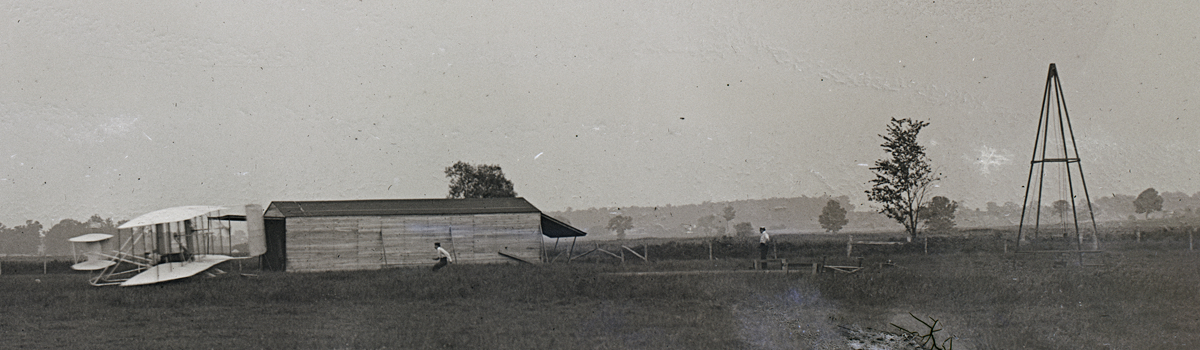

Wilbur Wright and Charles Taylor manage the Huffman Prairie catapult, as Orville begins the first 1905 flight of the Flyer III. (LoC P&P ppprs.00639 | wikipedia)

Next spring, the Wright Brothers continued their experiments much closer to Dayton, in a large field on the outskirts of town. They had free use of ‘Huffman Prairie’ (now part of the Dayton Aviation Heritage National Historical Park next to Wright-Patterson AFB), on which they built launch equipment and a hangar to store their new ‘Flyer II’ and the 1905 ‘Flyer III’ .

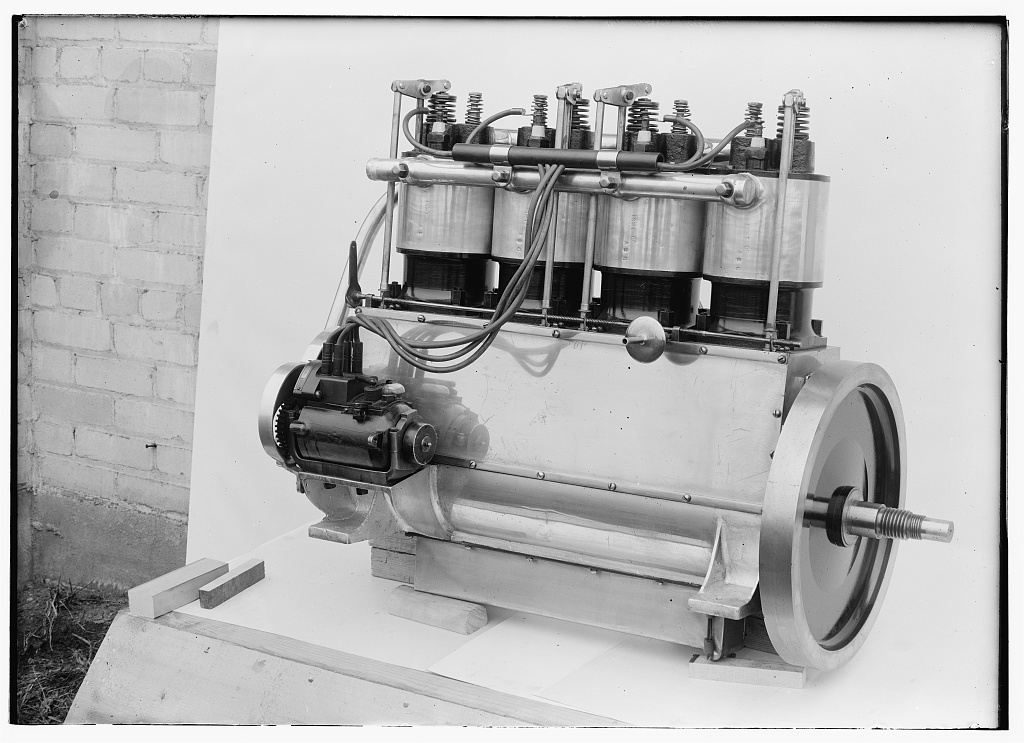

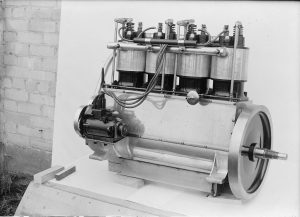

The left, magneto, side of a Wright 4-40 motor from 1911, looking from slightly behind – the pusher propeller bolts to the shaft in the flywheel. (LoC P&P pprs.00684)

As the Wrights moved steadily into the aviation business, Charlie Taylor continued to ’mind the store’ while also serving as their engine builder, master mechanic and ground crew. While they experimented, he built a series of steadily improved aircraft engines, culminating in the 36 HP (27 kW) Wright 4-40 or ‘Vertical 4’ that would power the Flyer III and over 100 subsequent Wright Company machines.

Distraught

When the US Army expressed interest in the Wrights’ invention, Orville went to Fort Myer, Virginia with the 1905 Flyer III, modified to carry a pilot and passenger and designated the Military Flyer.

The wrecked 1908 Military Flyer at Fort Myer, VA. Charlie Taylor performed the initial accident investigation. (CH Claudy | US National Archives via wikipedia)

As always, Charlie went along to keep the aircraft and its motor in good order for Orville’s demonstrations.

On September 17th, Taylor was to fly with Orville but his place was fatefully taken by Lt. Thomas Selfridge. When the flight ended in disaster, Charlie Taylor was distraught until doctors assured him that Orville would survive his injuries.

Orville  begged the doctors to let him speak with Taylor, and asked him to examine the drive chains to find the problem. Taylor inspected the wreckage as asked, and determined that the propellers had delaminated in flight.

‘I always wanted to learn to fly’

Ironically, Charlie had wanted to learn to fly himself. In 1948, while being interviewed  for the TV program ‘We Saw It Happen’, he recounted how the Wright Brothers valued his services so highly they refused to teach him.

‘They said they needed me in the shop and to service their machines, and if I learned to fly I’d be gadding about the country and maybe become an exhibition pilot, and they’d never see me again.’

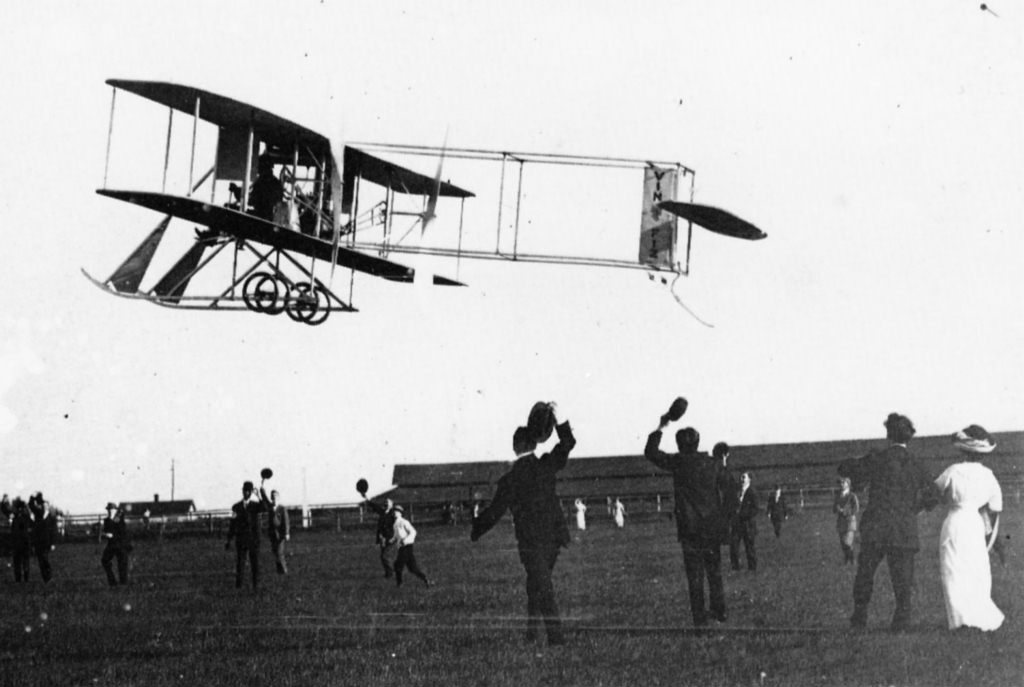

The Wright EX (a customised Model B) ‘Vin Fiz Flyer’ starts off on its epic transcontinental flight, September 17th, 1911. (wikipedia)

The Vin Fiz Flyer

As it happened, Taylor did end up gadding about the country – just not as a pilot…

When Calbraith Perry Rodgers was preparing to make the first trans-continental flight across the United States in 1911, he bought a Wright Model B from the Wright Company, in which Charlie was now head of the engine shop. This would become the immortal Vin Fiz Flyer.

The irrepressible Calbraith Rogers. With just 60 hours in his logbook, he spent 49 days adding another 82 hours across the USA. Four months later, he would be killed in a crash. (LoC P&P ggbain.09718)

However Orville knew the machine was never built to survive even a 1,000 miles in the air so he sold Rodgers enough spare parts to build two more airplanes and lent him the expert services of Charlie Taylor.

Charlie rode with Rodgers’ wife and mother, several reporters and various other followers in a specially chartered train, the Vin Fiz Special.

At each stop (planned or otherwise), Taylor would inspect and repair the Vin Fiz Flyer in a dedicated workshop car that was attached to the train, to make sure it was safe and ready for its next flight.

A visibly drained Cal Rogers is fêted at Pasadena, CA, on November 5th, 1911. From here he attempted to fly on to the coast, crashed (yet again) and spent three weeks in hospital. LoC P&P cph.3a35985)

The flight of the Vin Fiz Flyer would become a truly homeric odyssey involving 75 individual stages and 16 crashes. In the end, only the Wright B’s original rudders, engine oil pan and one main-plane strut would flop into the Pacific Ocean on December 10th, 1911, forty-nine days and over 4,000 miles after leaving Brooklyn, NY.

Without Charlie Taylor though, it wouldn’t have made it past Middletown, NY, an almost negligible 104 miles from Brooklyn.

Lost

As they predicted, the Wright Brothers never got their master mechanic back. He did return to Dayton, and found himself work with the Wright-Martin Company there until 1920. But in the meantime Orville had steadily withdrawn from the Wright Company after Wilbur’s death in May 1912 and he sold out entirely in 1915.

Better days… Charlie (left) and Wilbur Wright attach a canoe to the Flyer as a safety measure, before making an over-water flight from Governor’s Island, NYC, in 1909. (LoC P&P cph.3b25549)

Taylor, too, had lost his way. Later in the 1920s he moved out to California but, once there, blew his life savings on one of the West Coast’s failed real estate ventures. His wife Heretia died not long after.

With time, the aviation world  forgot all about Charlie Taylor and his formative contributions.

Amazingly, in 1936, when Henry Ford wanted to restore the original Wright Family home and bicycle shop for his heritage village about great Americans at Dearborn, detectives found Taylor working in the North American Aviation factory at Inglewood, Los Angeles. He was still making aircraft parts – for 37 cents an hour.

Friendless, destitute and dying

Ford reunited the precious machinist with his former employer, and Orville established a trust that would pay Taylor an $800 annuity for life.

Charles E Taylor, photographed later in his life, possibly during the 1930s when he was working for Henry Ford. (wikipedia)

Henry Ford employed Taylor until 1941, when he returned to California. There he found a factory job and joined the war effort, putting in 60 hours a week until a heart attack in 1945 left him unable to work any more.

He disappeared from aviation’s view for another ten years – until a reporter found him in the charity ward of Los Angeles General Hospital in November 1955. With ongoing health issues, and just his Social Security plus the annuity from Orville to sustain him, Charlie Taylor had wound up friendless, destitute and dying.

Recognising his contribution to their now-immense wealth, the aviation industry rallied and raised funds to move him to a private sanitarium – where Charlie Taylor’s motor finally gave out on January 20th, 1956.

Remembered at last

These days, for those who know, Charles Edward Taylor is an icon of excellence in aviation maintenance. Those who don’t, should know better.

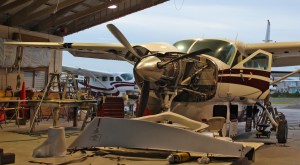

A Tropic Air Cessna Grand Caravan undergoing maintenance, Belize. (Eric Prado | flickr.com CC BY-SA 2.0)

Taylor is recognised as the first mechanic of powered flight and has been  been inducted into the US National Museum of The Air Force as the very first airplane mechanic. In 2005, Embry-Riddle University renamed its aircraft maintenance training school at Daytona Beach, FL, the ‘Charles Taylor Department of Aviation Maintenance Science’.

The FAA also awards the Charles Taylor Master Mechanics Award to the cream of US licensed aviation maintainers – those who have achieved over 50 years of impeccable service. A Roll of Honour is displayed in the FAA’s headquarters in Washington, DC. That would be the Orville Wright Building.

Finally – but only since 2008 – May 24th, Charles Taylor’s birthday, is now recognised as Aviation Maintenance Technician Day in 45 US States. It’s an especially fitting, if rather belated, memorial.

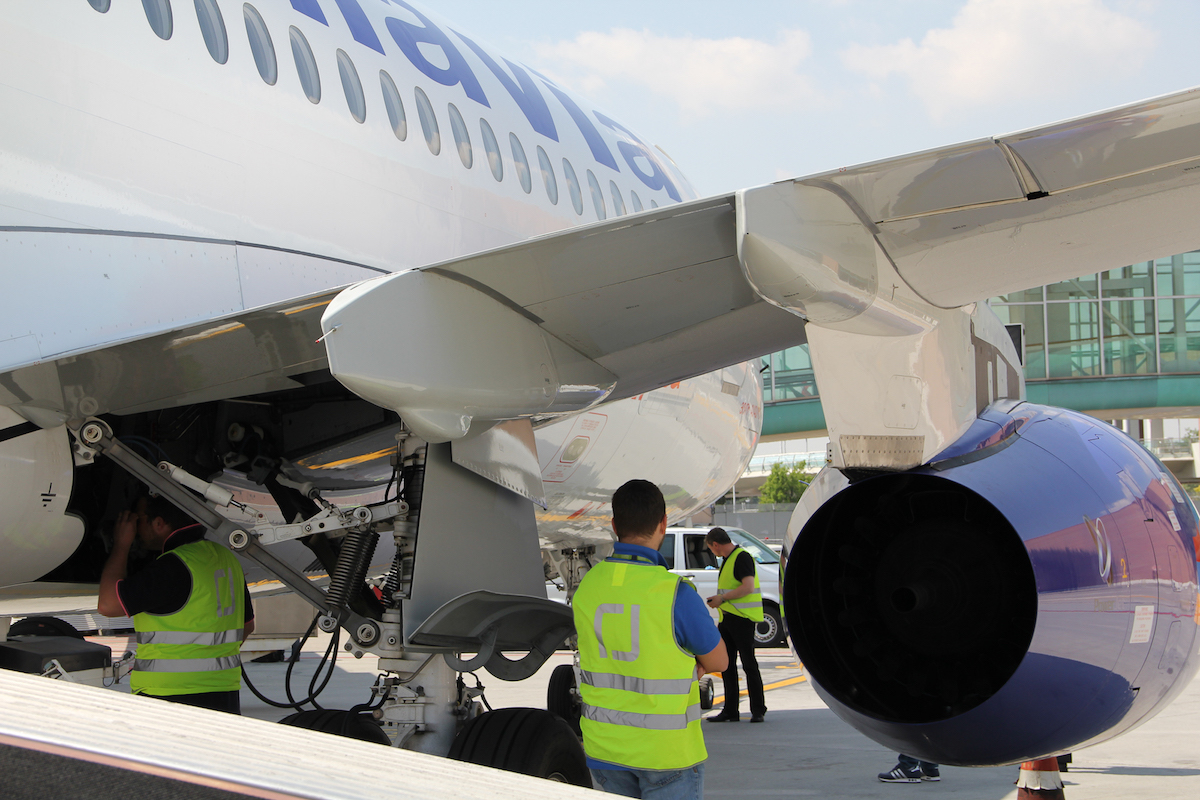

Routine line maintenance on an Armavia Sukhoi Superjet 100 at Venice Marco Polo LIPZ. (Super Jet International | flickr.com CC BY-SA 2.0)

May 24th, every day

But Taylor’s true legacy is every airplane you’ve ever watched soar over your head – at 300 feet or 39,000. It’s the warbirds that continue to thrill and roar and pirouette at airshows. It’s the first and last trip you made as a passenger or a pilot.

It’s every flight and every engine, every day. It’s ALL Charlie Taylor.
So Happy AMT Day, airscape readers. Hug your ground crew.

A special thanks to NASA’s ASRS Callback #448 (May 18th, 2017) for making me aware of Charlie Taylor’s immense legacy. If you don’t subscribe to Callback, you should.

Sources:

The Wright Brothers Aeroplane Company, Wright Engines

Bob Taylor, FAA Philadelphia FSDO Charles E Taylor: The Man Aviation History Almost Forgot

Wikipedia, Charlie Taylor
