727 departures



With the first-ever Boeing 727 (727-22, serial N7001U, c/n 18293/1) making its last-ever flight from restoration at Paine Field to a permanent home at the Museum of Flight, now seems like a fitting time to look back at one of the coolest airliners ever built.

I recently read a presentation called Web Design: The First 100 Years, which proposed that most of what we now think of as a modern airliner was invented for the Boeing 747.

That’s actually far, far more true of the 727.

What a jet

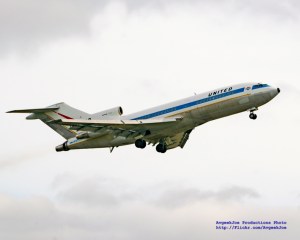

Last flight of the first 727... N7001U departs Paine Field on March 2nd, 2016. Note the leading-edge Kruger flaps (inboard) and slats (outboard). (Joe A. Kunzler Photo, AvgeekJoe Productions | flickr.com CC BY-NC-ND 2.0)
Last flight of the first 727… N7001U departs Paine Field on March 2nd, 2016. Note the leading-edge Kruger flaps (inboard) and slats (outboard). (Joe A. Kunzler Photo, AvgeekJoe Productions | flickr.com CC BY-NC-ND 2.0)

Although I wouldn’t want too many of them flying right over my house, I absolutely love the beautiful, capable and historic 727. What a jet!

With its ability to reach into smaller airports, it worked harder to popularise convenient jet travel than its direct predecessor, the 707, ever could; and it pioneered a lot of the systems and solutions that would go on to make the 747 possible.

For example, the 727 was the first airliner to have an engine specifically developed for the civil market (everything before had been built for military use first); it was the first aircraft anywhere to to have a gas turbine APU; and the first to employ triple slotted flaps in a wing that opened out like a Geisha’s fan.

Building a better airplane

I’d also argue that the 727 development process helped Boeing build a level of trust with American carriers, which opened the way for it’s even more successful little sister, the 737. (Older siblings out there, make of that what you will.)

So rather than write a traditional description of the airplane’s physical characteristics, I’d like to bring you some nuggets from that unique development story.

Primarily, Boeing’s creation of the 727 is a textbook example of how to combine customer requests with industry expertise. In the end, the company developed a solution that gave seven airlines roughly what they had each asked for, but also ensured Boeing could build a profitable, sustainable and successful jet.

The first tri-jet

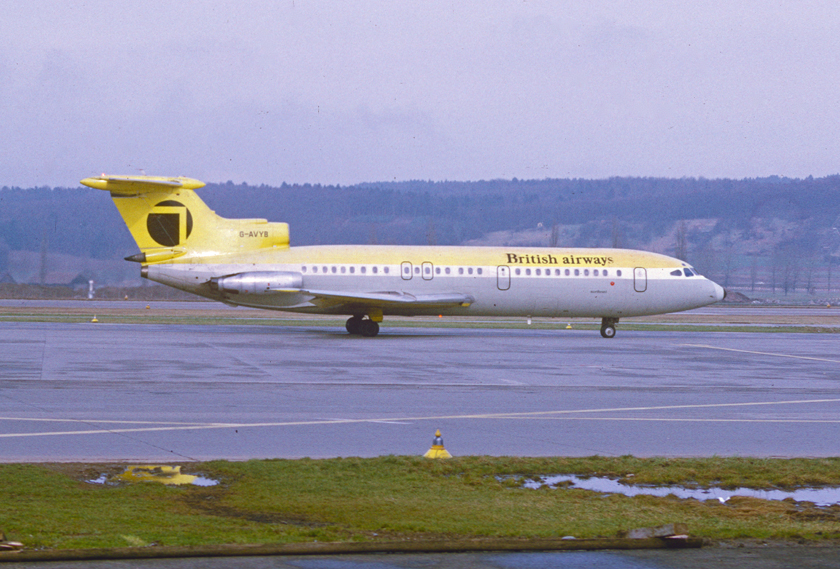

The smaller (originally, anyway), less successful, but very similar HS Trident. This is a 1E model, G-AVYB, at Zurich in the mid-70s. (Aero Icarus | flickr.com CC BY-SA 2.0)
The smaller (originally, anyway), less successful, but very similar HS Trident. This is a 1E model, G-AVYB, at Zurich in the mid-70s. (Aero Icarus | flickr.com CC BY-SA 2.0)

There’s no way to explore the 727’s story without acknowledging the Hawker-Siddeley Trident. And now’s an appropriate time to do that. The Trident was the world’s first tri-jet airliner, and its engine layout would be repeated in the 727. Despite sharing early engineering concepts and talk of a joint venture, followed by the obvious visual similarities, the nagging allegations that Seattle “stole” the British airliner simply don’t hold water.

The fundamental difference is that Boeing worked incredibly hard to align customer expectations with its own commercial needs. They were aiming to please a fistful of carriers, while safe-guarding the company’s long-term future. Hawker-Siddeley, in contrast, only had BEA as a customer. And they compromised their design by bowing to that airline’s short-sighted specifications instead of believing in the much-expanded market their jet could have created.

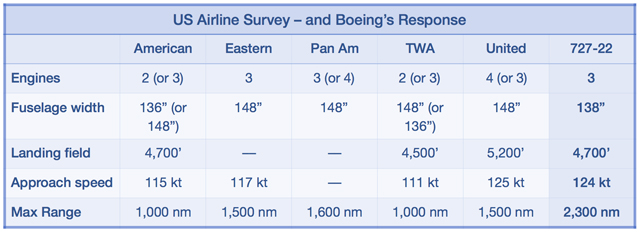

Survey Table

What the customer wants

After staring work with a survey of what their airline customers wanted from a short-haul jet, Boeing then launched an exhaustive study into the potential configurations and their respective merits.

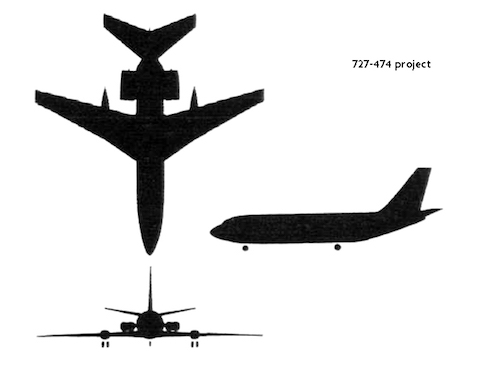

VC10 vision: Four aft-mounted engines, but no T-tail. Design project 272-474.
VC10 vision: Four aft-mounted engines, but no T-tail. Design project 272-474.

This included more than a hundred designs for two- and four-engined layouts featuring twin rear-mounted engines, Boeing’s proven underwing pods, and more.

Each project was labelled ‘727-ABB’, where A was the number of engines and BB was the number of the study. For example, 727-474 was the 74th design study for a four-engine layout.

That particular twinned, rear-mounted option was short lived. Despite having paired engines on both the B-47 Stratojet and B-52 Stratofortress, Boeing considered the risk of ‘contagious failure’ (fan failure in one engine taking out the engine next to
it) too high for a civil jet.

A true 'Baby Boeing': Four wing-mounted engines. Design project 727-475.
A true ‘Baby Boeing’: Four wing-mounted engines. Design project 727-475.

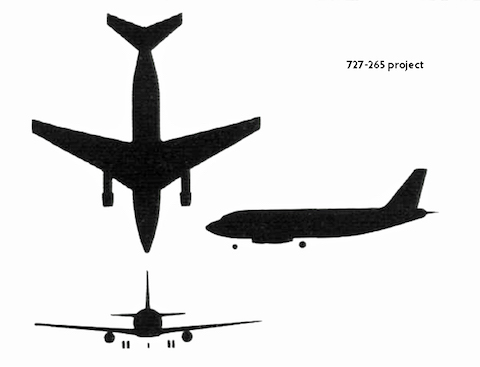

One of the two-engined configurations, project number 727-265, looked remarkably like the first generation 737s that would follow.

A far stronger front runner was simply a small version of the 720, which was itself a ‘baby’ 707 with four underwing engines. However a study of operating costs, modelled on shorter route sectors and airports that had previously only been served by prop-liners, showed that three engines would offer an 8% saving in direct operating costs over four, while still delivering the required landing and takeoff performance.

At a stroke, four engines were off the table..

And then there were two

Future 737? Twin, wing mounted engines. Design project 727-265
Future 737? Twin, wing mounted engines. Design project 727-265

A twin configuration was next to go. The airlines realised that FAA weather minima, which were still aligned to prop-liner performance and accounted for an engine failure on take-off, would limit a twin to the far more restrictive IFR conditions applied to singles.

This would make the new jet a source of inevitable delays every time the cloud ceiling dropped below 300 feet. An extra engine would buy them another 100 feet of inclemency.

Boeing actually took a whole year’s weather data from Idlewild Airport (now JFK) and painstakingly correlated it to one airline’s 11,041 scheduled New York departures over a year. They then worked out all the weather delays that their two- and three-engined designs would suffer in service.

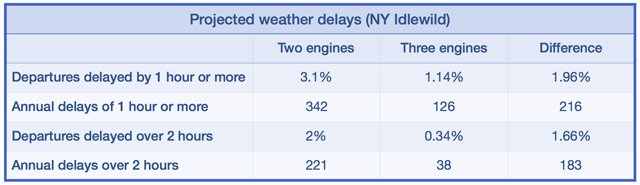

727 Weather Table

This enabled them to declare, with the confidence 11,000+ data points bestows, that a twin would experience 221 weather delays of two hours or more per year, while a three-engined jet would only be delayed 38 times – a staggering difference of 183 very late departures and all their knock-on effects.

Three’s the charm

Clearly, three engines were the way to go – which raised the problem of where to put them. The third engine was the simplest proposition. As Boeing engineers joked, there are only so many places to put a third engine – and they’re all in the fuselage. (Douglas engineers would later prove them wrong.) Still, Boeing explored a conventional tail, V-tail and even twin fins before burying the engine in the rear fuselage with a curved inlet duct. The T-tail swiftly followed – partly for ease of engine access, but mainly to keep the elevators clear of downwash from the extensive flaps. (More on those in a minute.)

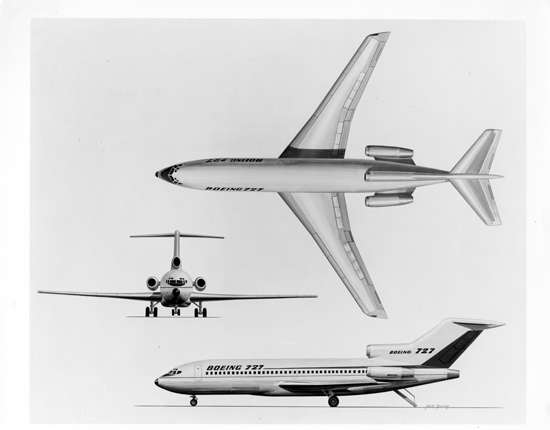

A true classic, however you look at it – Boeing's final design for the iconic 727 family. (SDASM 00062179)
A true classic, however you look at it – Boeing’s final design for the iconic 727 family. (SDASM 00062179)

Placement of the other two engines was an open question. The engineers weren’t that worried about the concept of a ‘clean wing’ and its high speed/low drag benefits. They’d found that nacelle pods and underwing pods created about the same amount of drag, while underwing pods helped limit spanwise flow, which made it easier to control the stall without over-wing fences.

One option was to put the engines in pods above the wing’s trailing edge, where they effectively reduced drag by acting as anti-shock bodies. Unfortunately they were just as effective at inducing flutter, and the idea was abandoned.

The inevitability of aft-mounted engines rapidly gained momentum. With little difference in terms of aerodynamics, the decision was swayed by the aft mounted engines being higher (i.e. safer from ground scraping and dirt ingestion); having a slightly lower installed weight; creating a quieter cabin; and allowing the fuselage to be slung lower, for easier access by ground services.

More importantly though, the final clean-wing configuration gave designers the freedom to build an incredible flap system that paired low speed, short field performance with a high speed cruise. It meant the 727 would become the perfect small airliner, bringing the comfort, performance and flexibility of jets to hundreds of new destinations and millions of potential passengers.

A new dimension in lift

The flaps were a first for airliners – triple slotted main flaps, plus leading edge slots and Kruger flaps. In early development, all the flaps and flap tracks incorporated blowing (using bleed air from the engines) to improve boundary layer control.

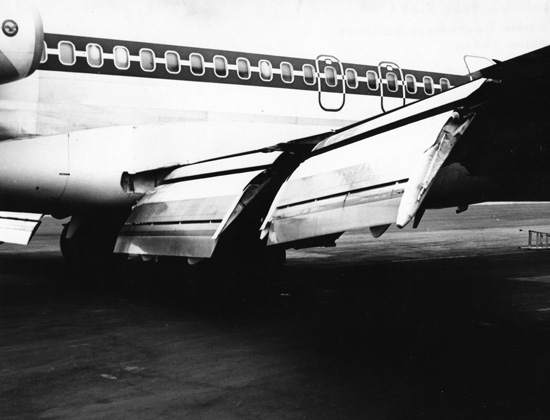

An unidentified 727 shows off the full stretch of its flap system, which more than doubled the wing's theoretical lift. (SDASM 00062159)
An unidentified 727 shows off the full stretch of its flap system, which more than doubled the wing’s theoretical lift. (SDASM 00062159)

Blowing wasn’t incorporated in the end, but the final, unblown flap system still delivered a lift coefficient of 2.8 (against an original design goal of 2.0), while the clean, cruising wing had a CL of 1.25. In other words, the maximum lift coefficient was 2.24 times the clean wing CL.

(Now might be a good time for you to review this post about CL and the Lift Equation.)

Back in the day, those flaps were a source of fascination for plane spotters and passengers with a view of the wing. It’s reasonably normal now, but watching the 727’s wings unpack themselves to reveal the central box as the only solid part of the whole affair must have come as quite a shock.

The engine ambush

The final element in Boeing’s exciting new package was its powerplant. The success of the 707, and the evolution of turbine technology, had created a world where it was at last viable to develop a turbofan engine specifically for civil jets.

Initially, Boeing was designing around the 12,750lb dry thrust Rolls-Royce Spey, built under license by Allison as the AR963. But in 1960, well into the 727’s development, Pratt & Whitney offered their new low-bypass JT8D-1, with 14,000lb thrust, but a 1,000lb weight penalty.

Another shot from N7001U's big day, showing the arrangement of the thrust reversers – out from the centre, up from the sides. (Joe A. Kunzler Photo, AvgeekJoe Productions | flickr.com CC BY-NC-ND 2.0)
Another shot from N7001U’s big day, showing the arrangement of the thrust reversers – out from the centre, up from the sides. (Joe A. Kunzler Photo, AvgeekJoe Productions | flickr.com CC BY-NC-ND 2.0)

Whatever late night phone calls took place next will likely remain a mystery, but Eastern Airlines chairman Eddie Rickenbacker was soon in contact with Boeing to declare that Eastern preferred the JT8D.

Pratt & Whitney’s new jet swiftly became an option, and then the only power plant, for the 727.

All three engines would have “clamshell door” thrust reversers to help with short field landings. The outboard reversers exhausted vertically, while the No.2 engine’s exhausted horizontally just aft of the tail fin.

That middle engine was hung from one central beam, with access from hinged cowl doors on either side of the aircraft, meeting at the lower centreline. The hinge pins were easily removed, so the cowls could be taken right off for ease of maintenance.

Each aircraft also carried a special portable hoist, which could be used for changing the No.2 engine if proper ground equipment wasn’t available..

Big thinking for small fields

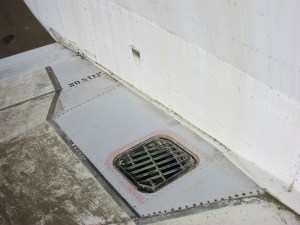

The APU exhaust of a Boeing 727-100, cleverly buried in the starboard wing root. (Bill Abbott | flickr.com CC BY-SA 2.0)
The APU exhaust of a Boeing 727-100, cleverly buried in the starboard wing root. (Bill Abbott | flickr.com CC BY-SA 2.0)

That thinking about smaller fields and their limited facilities was central to the 727 design philosophy. It led to the legendary ventral staircase, removing the need for terminal air-stairs. Eastern opted for a self-contained front stair as well, which folded away under the main cabin floor of their jets.

There was also the novel gas turbine APU, which provided the 727 with self-contained ground power and main engine starting. The APU itself was mounted under the main cabin, through an opening in the web of the keel beam, and had an exhaust port in the upper surface of the wing. Access was from the main wheel bay.

Another innovation was single-point refuelling, which reduced turnaround times to make the 727 an even more profitable workhorse.

The 727's innovative ventral stairway... (SDASM 00062185 | flickr.com)
The 727’s innovative ventral stairway… (SDASM 00062185 | flickr.com)

Speed of service

But for so much new and detailed thinking, the development of the 727 was remarkably quick. (Suspiciously quick, the Trident defenders still claim.) With the configuration questions finally settled,  the design was finalised on September 18th, 1959. The finished airplane would be making money in little over four years.

...and the 'Cooper Vane' that prevents the ventral stairs ever being opened in flight – again. The nose of the aircraft is to the left, the stairway lower right. Airflow rotates the vane and plate counter-clockwise, locking the stairs. (wikimedia)
…and the ‘Cooper Vane’ that prevents the ventral stairs ever being opened in flight – again. The nose of the aircraft is to the left, the stairway lower right. Airflow rotates the vane and plate counter-clockwise, locking the stairs. (wikimedia)

N7001U rolled out of Boeing’s Renton plant on November 27th, 1962 and first flew on February 9th, 1962. Deliveries to Eastern Airlines began on October 29th, 1963; certification followed on December 24th; and the first revenue service was flown on February 4th, 1964.

One hidden change was the installation of vortex generators inside the No.2 engine inlet duct, after disturbed flow caused engine surges early in N7001’s test program. And by ‘early’, I mean right after rotation on that first flight.

In addition, the actuators for the leading edge flaps and slats were insufficient for the air loads generated in flight. Those devices had to be left deployed for the entire first flight, and the actuation system redesigned.

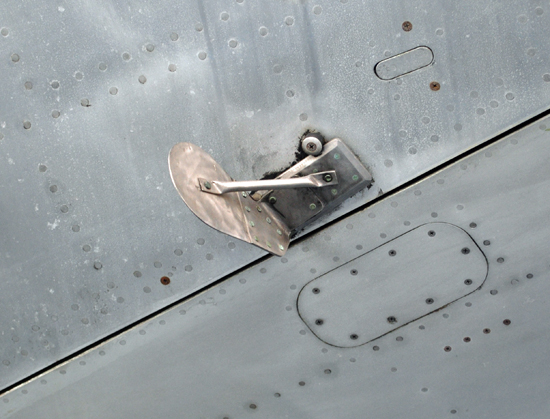

But my favourite 727 detail is the ‘Cooper Flap’, a small aerodynamic tab that locks the ventral stair during flight – retro-fitted from 1972 to prevent a repeat of “Dan Cooper”’s famed post-hijack parachute escape. Not too many people notice that unusual feature.

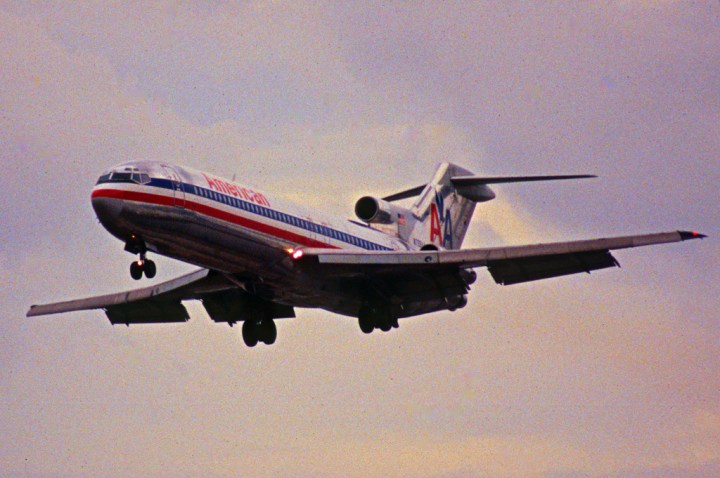

Something special in the air... N728AA, an American Airlines 727-227 on approach to Miami. 200 series jets were limited to flaps 30, whereas 100 series jets could deploy theirs a full 40 degrees. (Aero Icarus | flickr.com CC BY-SA 2.0)
Something special in the air… N728AA, an American Airlines 727-227 on approach to Miami. 200 series jets were limited to flaps 30, whereas 100 series jets could deploy theirs a full 40 degrees. (Aero Icarus | flickr.com CC BY-SA 2.0)

Tri-ijet triumph

Even admitting to my own heavy bias, the 727 was, and remains, a triumph.

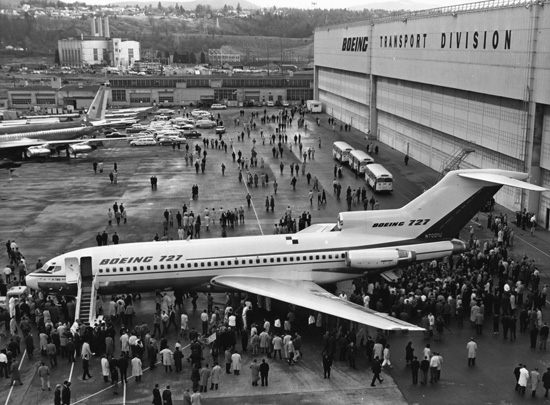

History in the making... N7001U rolls out of the Boeing plant at Renton, WA on February 5th, 1963. (SDASM 00062177)
History in the making… N7001U rolls out of the Boeing plant at Renton, WA on November 27th, 1962. (SDASM 00062177)

It redefined air travel and would become the most successful airliner ever, until eventually overtaken by the 737 – a design that benefitted in every way from the 727’s story. Aircraft No.1,  N7001U, would fly with United Airlines until October 1988, four years after 727 production ceased at 1,832 airliners.

It was certainly the greatest example of a manufacturer telling airlines what they actually wanted, instead of what they thought they wanted, since Donald Douglas sold TWA a twin-engined airliner instead of the three-engined anachronism they asked for.

That kind of intelligent response is clearly how legends are made.

As a final bonus, here’s a rain-drenched look at N7001U before its restoration, posted by Ryan Bomar in March 2014.

Information for this article sourced from Boeing’s Trimotor, Flight, 30 December 1960, p.1010 and Boeing 727, Flight, 9 May 1963, p.675
